Wood Chipper Machine
2. Capacity: 0.6~16 t/h
3. Dimension: 150*70*8~480*170*18 mm
4. Weight: 1500 kg
Wood chipper machine can be adjusted to produce different sizes wood chips.
Wood chip is mainly used for the efficient removal of branches and green waste in areas such as parks and woodland, but as wood chip comes to be regarded as an important natural resource, wood chipping has taken on a new, economic dimension. Wood chip is valuable if the quality is consistent and meets designated requirements. Wood chipper machine ensures these requirements. As one professional wood chipper machine manufacturer, Shanghai Pallet Machinery entire product range is designed to high quality wood chipper machine and the knives of wood chipping machines, which can be adjusted to produce different sizes wood chips, depending on what the wood chip will be used for.
Wood Chipper Machine Working Process:

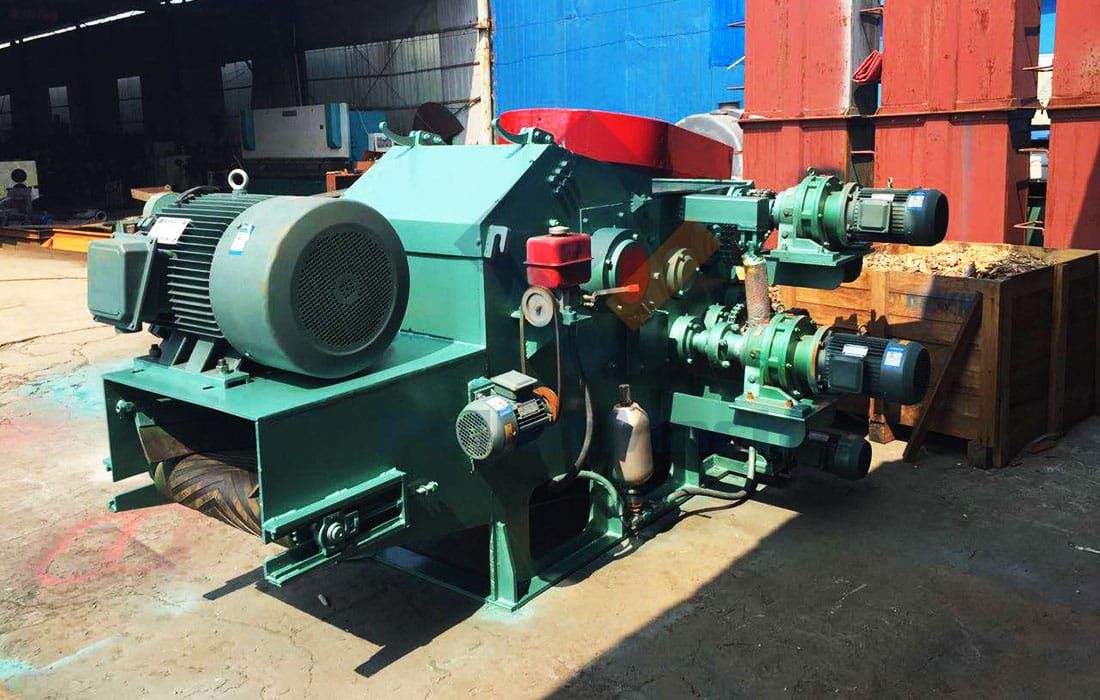

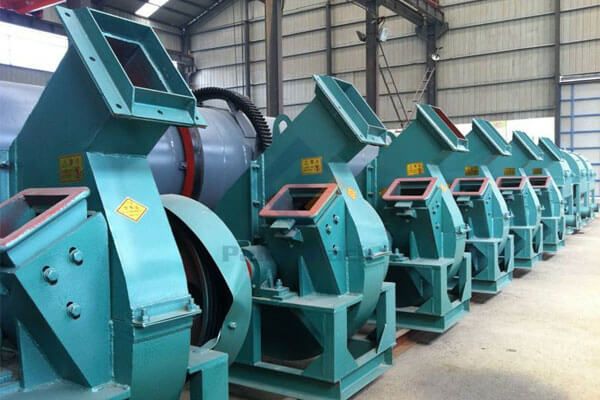

Wood Chipper Machine is composed of these main parts: base foundation, chipping body, straight transmit gearing and power engine. The chipping part of the disc wood chipper machine is the disc blades in the chipping body. The disc and the chipping blades welded on the disc rotating fast together. Then the wood materials are transmitted to the chipping place by the transmission device. The wood materials encounter the rotating chipping blades and are cut into wood chips. As the wood materials get shorter, the transmission device will transmit them to the same chipping place. Finally, the wood chips are processed with flat incision, even length and uniform chip thickness.
Wood Chipper Machine Application:
Wood chipper machine is one of the main equipment of the whole compressed wooden pallet production line. Except making wooden pallet for logistics transportation, wood chipper machine is widely used in the production of paper making, edible fungus, shaving board, sawdust, high density board, fiber board and so on. As the famous wood chipper machine manufacturer in China, Shanghai Pallet Machinery provides customers with high quality wood chipper machine on wholesale price.
Wood Chipper Machine Features:
- The chipping blade of wood chipper machine can be adjusted to produce different sizes and thicknesses wood chips, to meet the paper, fiberboard, particleboard industry requirements of different length wood chips.
- The automatic feeding equipment, greatly increasing the production rate, and save time and manpower.
- Wood chipper machine is the ideal machine, which for preparing raw materials suitable for making wood pallet.
- Wood chipper machine is suitable to be fed with a variety of raw materials, such as wood trunks, wood branches, wood leaves, bamboo, cotton stalks, wooden blocks, and so on.
- Easy operation, low and simple maintenance, long working life and low noise.
