Wood Pallet Machine

Wood Pallet Machine

1. wood waste reycle
2. customized service
3. one-stop service
  • single mould wood pallet machine
  • double moulds wood pallet machine
  • presswood pallet

PalletMach wood pallet machine is Unique

1. Our presswood pallet machine is unique, it is a new type of one time forming machine by hot pressing technology, which is different from tradition nailing pallet machine.
2. Raw materials suitable for this machine can be waste wood, wood scrap, bamboo, straw, sawdust, waste kraft paper and other materials containing wood fiber.
3. The presswood pallet can be used for packing also for stock storage in the Harsh environment, strong loading capacity, no nails, no steaming, ISPM 15, environmental protection, can be recycled.
4. Wood pallet making machine also called wood pallet press machine, wood pallet moulding machine, which is a very good equipment for wood recycling.

How does wood pallet machine work?

You can choose presswood pallet production method(automatic or manual) according to your requirement.

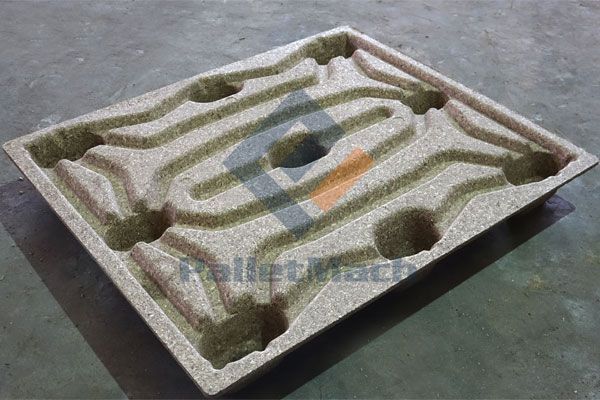

Presswood Pallet

presswood pallet

specification (mm×mm): 400×600, 600×800, 800×1000, 800×1200, 1000×1200, 1100×1100
Pallet weight varied from 10 kg~22 kg.
Loading capacity: 2 t~3 t (dynamic load) and 6 t~8 t (static load). Click here to learn detail information and testing video of presswood pallet.

What materials can make presswood pallet?

Log, waste wood, wood scrap, bamboo, straw, sawdust, waste kraft paper and other materials containing wood fiber.

Wood pallet machine model parameter

Wood pallet machine
Model Single Mould/td> Double Moulds
Pressure 0--1200 tons (adjustable) 0--1200 tons (adjustable)
Hydraulic oil cylinder quantity 4 pieces 4 pieces
Pallet density 850-950 kg/m3 850-950 kg/m3
Shaping cycle 450 seconds 450 seconds
Pressure increasing time 300 seconds 300 seconds
Capacity 180 pieces/ 24 hours 280 pieces/ 24 hours
Power 18.5 kW 22 kW
Weight 22 tons 32 tons

If you want to invest in a high-yield wood waste recycling project or pallet project, PalletMach gives you a One-stop solution, or if you are interested in our presswood pallet machine, and have a plan to establish a presswood pallet production line, You can learn some knowledge from the following process of presswood pallet production.

  • Step 1: Gather the materials containing wood fiber and eliminate the impurities, then chip them into wood chips.
  • Step 2: crush the materials containing wood fiber.
  • Step 3: dry the crushed materials to 5% moisture content.
  • Step 4: evenly mix the dried materials with glue according to the certain proportion.
  • Step 5: fill the mixed materials into the mould and press.
  • Step 6: keep pressing for about 7 minutes.
  • Step 7: automatically discharge the final pressed wood pallet.

Remarks:

1. The materials containing the wood fiber mentioned above refer to bagasse, bamboo, wasted wood timber, short lumber, straw etc.
2. Anything containing wooden fiber could be used as the raw materials, so the wide sources of raw materials save the manufacturing costs of the product to a great extent.
3. To guarantee the mixture performance of materials and glue, the moisture content should remain 5% after drying in step 3.
4. The adhesive mentioned above is urea formaldehyde glue or others.
5. In practical use, the measurement of pallet performance depends on the static loading and dynamic loading.
