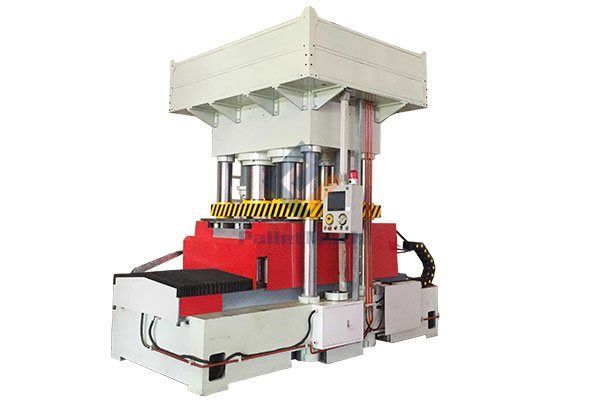

Double Moulds Wood Pallet Machine

Double Moulds Wood Pallet Machine

1. Large Capacity, More Efficient
2. A Machine Produce Two Types Of Pallet
3. Fully Automatic Production
  • double moulds wood pallet machine
  • pallet mould
  • double moulds wood pallet making machine

Introduction of double moulds wood pallet machine:

Double moulds wood pallet machine is the new type of the presswood pallet machine with two moulds in one machine.

The capacity of double moulds wood pallet machine is much higher than the single one, and it is more economical of large capacity.

Double moulds wood pallet machine meets the requirement of environmental protection, and can help recycle waste wood to get profits.

Advantages of double moulds wood pallet machine:

  1. High precision.
    Presswood pallet machine adopts three-beam four-column structure. The four column guide device assures the precision of closing moulds and the stability of pressing during the working of presswood pallet machine.
  2. High durability.
    The raw materials of the pressing machine are all the durable materials, to minimize maintenance of the machine. The upper mold is integrated with the “Sliding beam”, which doubles the strength, stability and precision.
  3. High capacity.
    The capacity of double mould press wood pallet machine is much higher than the single one, and it is more economical of large capacity. And the capacity can up to 260 pallets 24 hours.
  4. Better molds design.
    The final pallet is one-piece design with round edges without burrs. They can stack easily and space saving 60% than the traditional pallet.

Technical parameters of double moulds wood pallet machine:

Double Moulds Wood Pallet Machine
Model PM-1000/1200
Voltage 220 V/380 V, 50 Hz, three-phase
Capacity 240 pieces/day (24hours)
Power 22 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 0-1200 tons (adjustable)
Shaping cycle 300 seconds
Weight 30 tons
Dimension 4200*2200*3500 mm
Remarks: it includes two sets normal mould along with one set machine.
