Single Mould Wood Pallet Machine

Single Mould Wood Pallet Machine

1. Stable Structure
2. Wood Waste Recycle
3. Fully Automatic Production
  • single mould wood pallet machine
  • presswood pallet
  • presswood pallets

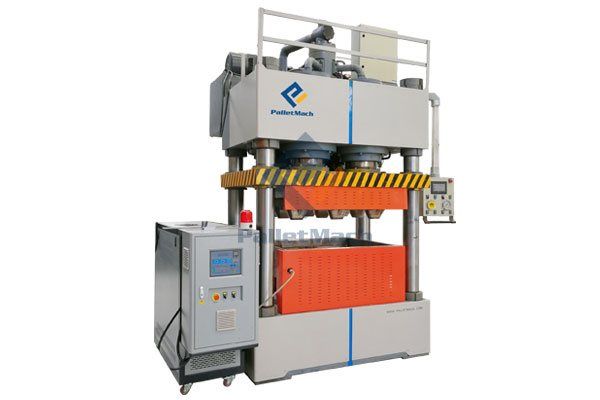

Introduction of single mould wood pallet machine:

Single mould wood pallet machine is a new type of one time forming machine. It is also called wood pallet machine, wood pallet molding machine.

Single mould wood pallet machine meets the requirement of environmental protection, which can help to recycle raw materials, such as wood chips, waste wood pallets, waste wood, timbers, kraft paper, straw, bamboo, even if plastic etc.

Single mould wood pallet machine can help solve the problem of the environment and also make profits

Raw materials:

  1. Waste wood, scrap of the wood, sawdust wood chips, wood shaving, wood chips, big chips, raw wood, burned forest, logs, wood board, branches, timber, wood flakes, and waste pallets, and so on.
  2. Containing rich fiber also can be used to produce the pallets, such as straw, waste kraft paper, bamboo, palm trees, coconut, softwood, wheat straw, bagasse, and miscanthus, and so on.

Raw materials for single mould wood pallet machine are spreading all over the world, which lower the investment of wood pallet machine.

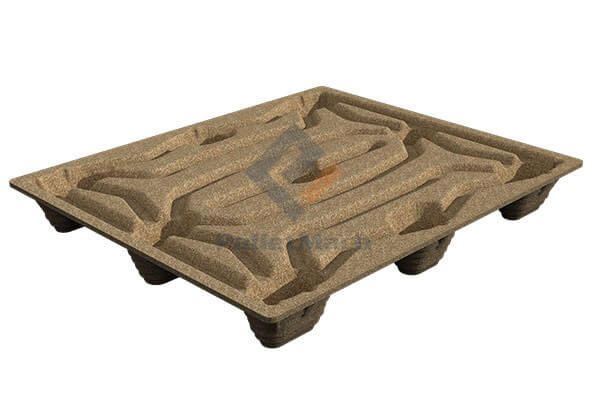

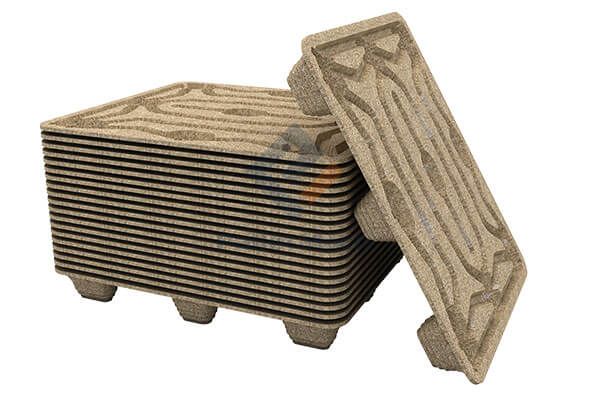

Features of final pressed wood pallet:

  1. Low moisture content and constant intensity and rigidity. Wood pallet is non-hygroscopic and no deformation in the course.
  2. Stable dimension and no distortion and warping.
  3. High precision size and light weight. It is specifically designed reinforcing rib that ensures the intensity and production accuracy.
  4. Free fumigation and popular in the import and export transportation.

Technology parameters of single mould wood pallet machine:

Model PM-630 PM-800 PM-1000 PM-1250 PM-1600 PM-2000
Dimension(m) 2.9×2.05×5.1 3×2.05×5.2 3.1×2.05×5.35 3.2×2.05×5.5 3.3×2.05×5.6 3.4×2.05×5.7
Weight(t) 16 18 20 25 30 42
Power(kw) 30 30 37 37 45 55
Capacity(pcs/set/h) 7-13 7-13 7-13 7-13 7-13 7-13
Pressure(t) 0-630   0-800   0-1000   0-1250   0-1600   0-2000
Hydraulic cylinder diameter(mm) 400 450 500 550 600 650
Hydraulic cylinder quantity 4 pieces
Voltage Customized
