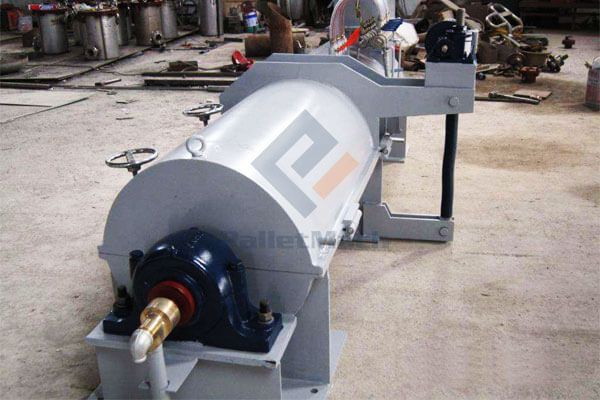

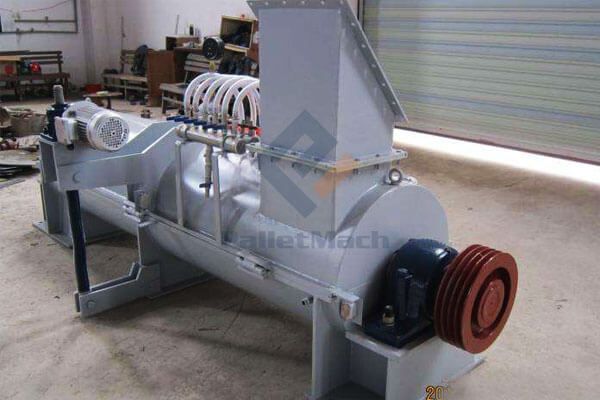

Ring Type Glue Mixer
1. Easy operate
2. High production efficiency
3. Easy maintenance and replacement
2. High production efficiency
3. Easy maintenance and replacement
Introduction of ring type glue mixer:
- Ring type glue mixer machine can mix glue with the raw materials continuously.
- The ring type glue mixing machine is used in wood pallet block and molded wooden pallet production line.
- Ring type glue mixer is easy to operate, so as to realize automatic management. And ring type glue mixing machine can mix glue with raw materials evenly and with good quality final materials. Besides, it also has high production efficiency. Hence, it is suitable for large-scale production.
- Glue mixer adopts the forced cooling cycle to improve the cooling effect, with the outstanding advantages of non-adhesive, no burning plastic and so on.
- Both ends of the bearings use the latest type of installation, so it is very convenient to maintenance and replacement.
Technical parameters of ring type glue mixer:
| Ring Type Glue Mixer | ||||
| Model | Capacity(kg/h) | Inner diameter(mm) | Supporting scale(m3/a) | Power(kW) |
| BS140 | 250 | Φ280 | 800-3000 | 7.5 |
| BS160 | 800 | Φ320 | 3000-10000 | 11-15 |
| BS180 | 1200 | Φ360 | 10000-15000 | 15-18.5 |
| BS200 | 1600 | Φ400 | 15000-25000 | 22 |
| BS250 | 3200 | Φ500 | 25000-50000 | 30 |
| BS300 | 7500 | Φ600 | 50000-80000 | 45 |
| BS350 | 10000 | Φ700 | 60000-120000 | 55 |
| BS400 | 20000 | Φ800 | 120000-200000 | 75 |
| BS450 | 40000 | Φ900 | 200000-400000 | 90 |
