CNC Pallet Nailing Machine

CNC Pallet Nailing Machine

1. Adjustable Pallet Size
2. Profit-Building
3. Advanced Technology
4. Cost-Effective

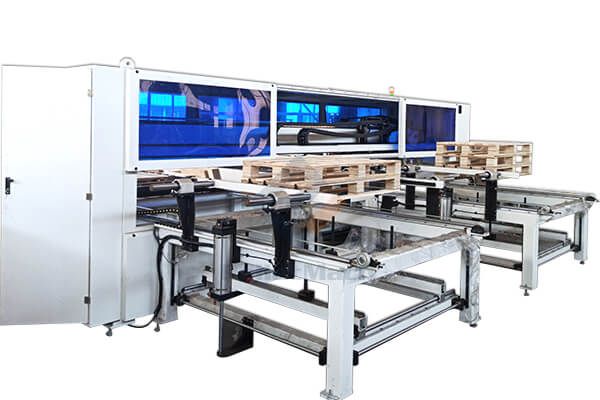

  • CNC Pallet Nailer

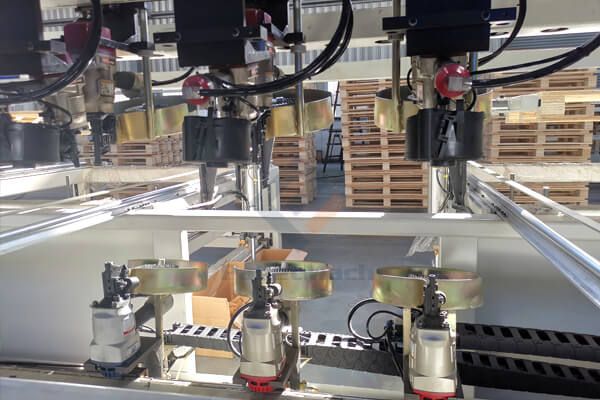

  • Nailers

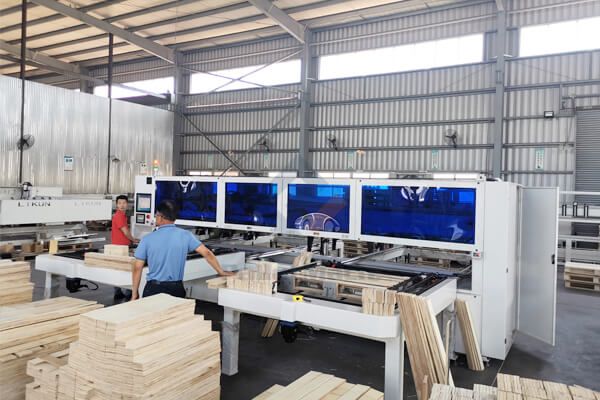

  • CNC Wood Pallet Nailer

CNC pallet nailing machine adopts advanced CNC technology; it is suitable for CP1-CP9 pallets (all kinds of pallets, American pallets and Euro pallets). For same type different size pallet, it needs adjust the fixture; for different type pallets, it needs change the fixture.

Features of CNC Pallet Nailer

  1. Adjustable Pallet Size
    CNC pallet nailer is designed to produce American standard pallets, European standard pallet, and customized pallets.
  2. Advanced Technology
    CNC pallet nailer is equipped with the finished pallet stacking device, which has high automation degree, smooth and tight process flow, and can be equipped with automatic pallet stacking machine and one-stop nailing and stacking production.
  3. Profit-Building
    CNC pallet nailer adopts the fully automatic program, and the operating system adopts imported PLC control, the touch screen is simple to operate, with convenient control, and accurate nailing position. Besides, CNC pallet nailer is with multiple processes are completed at one time, which greatly improves the work efficiency.
  4. Cost-Effective
    Automatic nailing and stacking are connected into the whole production line. After the nailing process is completed, the finished wooden pallets are automatically flipped onto the stacking platform and stacked neatly. So that it can achieve the effect of automatic receiving, which is convenient for forklift transportation; at same time, saving the time of the nailing machine and the stacking operation. On account of the workpieces do not need to be stacked and rotated, and directly flipped into the lifting platform. It not only reduces the labor intensity, but also reduces time and space for handling.
  5. More Safe
    CNC pallet nailer has no specific requirements for the operator, and it is equipped with photoelectric switch, safety light curtain to ensure safe production.

Specifications of CNC Pallet Nailing Machine

Model TY-201DD
Capacity 2 pallets/minute
Working mode Manual feeding/Auto Nailing/Auto stacking
Operating mode Industrial LCD computer
Operational mode Intelligent control system
Motor 7.5Kw servo motor
Processing dimension (length, width, thickness) Customized
Feeding speed 80 m/min
Voltage Customized
Air compressor 100 L
Workers needs 2-3 workers
Nail size 32-90 mm
Overall dimensions 4540*5200*1985 mm
Weight 3500 kg
